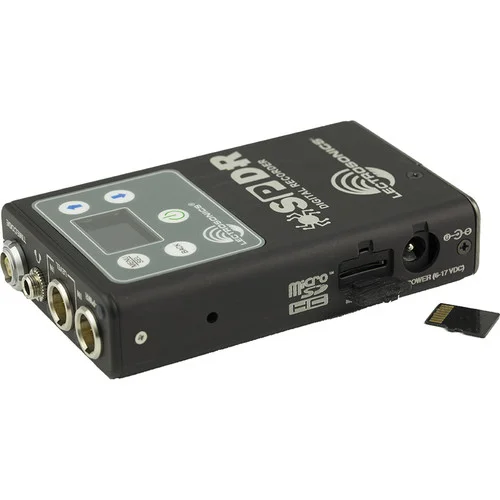

Sep 12 PRODUKTNYHET: Lectrosonics lanserar SPDR

Tillverkaren introducerar tvåkanals digital inspelningsenhet med tidkod, skriver Visono Media på sin hemsida.

Dosan, som drivs antingen med extern DC eller batteri, då med 20 timmars drifttid, har två ingångar för myggor, line eller AES/EBU och hörlur/linjeutgång. Den spelar in på micro-SD-kort i formatet BWF (Broadcast Wave Format) i 24 bit/96 kHz.

SPDR har också inbyggd tidkodgenerator som går att jamma med extern tidkod via en 5-polig Lemo-kontakt.

SPECIFIKATIONER

Inputs 2 x TA5 5-pin male
Outputs 1 x 1/8" / 3.5 mm TRS
Timecode
- Connector: LEMO 5-pin female
- Signal Voltage: 0.5 to 5 Vp-p
- Input Impedance: 10 kOhms
- Format: SMPTE 12M-1999 compliant
- Time Base: 1 ppm TCXO
Media Card Slots 1 x microSDHC
Bit Depth 24-bit
Sample Rates 48 kHz or 96 kHz
Audio File Formats Supported BWF (Broadcast Wave Format)
Supported Digital Audio Standards AES3
Maximum SD Card Size 32 GB
Input Level
- Dynamic Microphone: 0.5 to 50 mV
- Electret Microphone: 2 to 300 mV
- Line Level: 17 mV to 1.7 V
Maximum Headphone Output Level -3 dBu / 575 mV RMS
Frequency Response 20 Hz to 20 kHz (+0.5 dB, -1.5 dB)
Dynamic Range 110 dBA before limiting
Distortion < 0.035%
Battery Requirement 2 x AA lithium non-rechargeable
Battery Life Up to 20 hours typical at 48 kHz sample rate
External Power Requirement
- Input Voltage: 6 to 17 VDC
- Input Current: 75 mA maximum at 12 VDC (96 kHz recording)
- Connector: 0.1" / 2.5 mm coaxial connector, center pin positive
Operating Temperature -4 to 122°F / -20 to 50°C
Construction Material Solid machined aluminum
Dimensions (H x W x D)3.9 x 2.4 x 0.8" / 99.1 x 60.5 x 20.8 mm
Weight 5.7 oz / 162 g (with AA lithium batteries, without belt clip)
